What makes the jackery connector work for solar setups in 2026

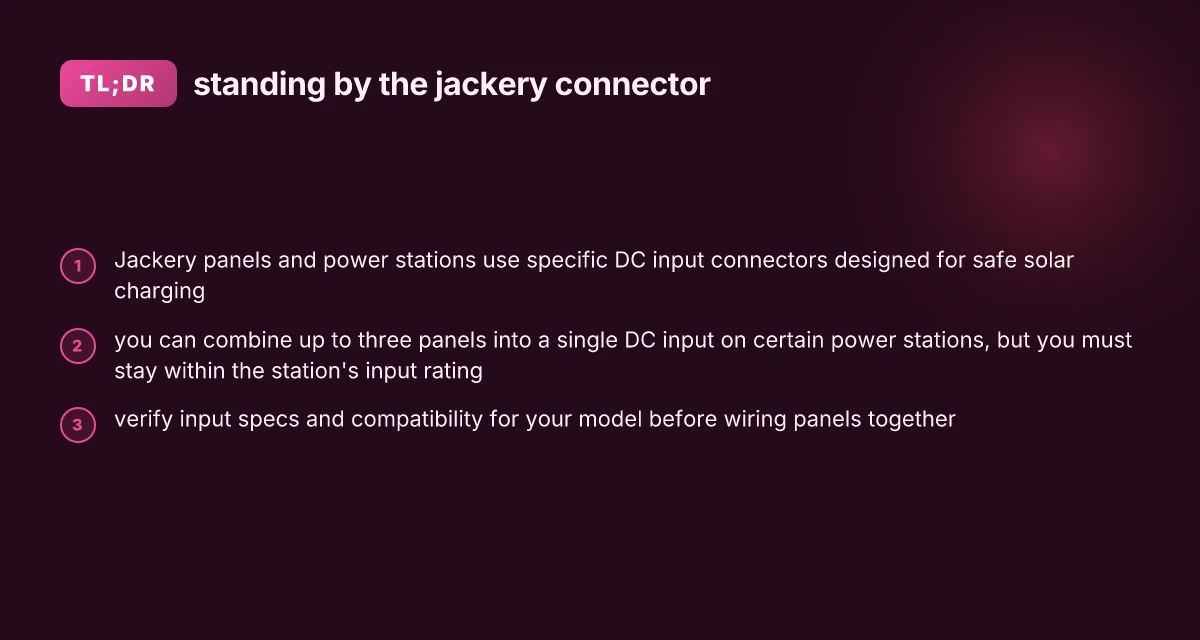

Jackery connector basics for solar setups

Jackery panels and power stations use dedicated DC input connectors that are designed for safe, compact solar charging. The official guides describe how multiple panels can be combined under a single DC input on some models, which helps keep wiring neat and portable for road trips and off-grid weekends. Compatibility varies by model and by the type of panel you pair with it, so always double-check input specs before wiring panels together. In practice you’ll want to match the connector type on your Jackery unit with the panel end, and verify the current and voltage ratings to avoid overloading the input.

How multiple panels map to a single input

1. Identify the input port on your Jackery unit and confirm the maximum voltage and amperage it will accept. Modern Jackery models often specify a single DC input with a combined wattage limit across panels, which helps you plan how many panels to stack without overheating or tripping protections. I dug into the official guides to confirm that the DC input can aggregate multiple panels on compatible models, which keeps the setup streamlined for outdoor adventures.

2. Check the panel-to-panel mounting method. The Jackery solar panel connector ecosystem is designed so you can chain up to three panels into one input on select units. This matters for road trips where you want to maximize sun exposure without juggling multiple cables. The guidance notes that the connector lets you combine panels while staying within the single input’s specifications.

3. Select the right cables and adapters. Not all third-party cables are interchangeable with Jackery’s connectors. The compatibility guide emphasizes using the official connector kit or verified third-party cables that match Jackery’s connector geometry and polarity. When types differ, you risk miswiring a panel string or defeating built-in protections, which can shorten component life or reduce charging efficiency.

4. Safety and best practices. Always wire panels with the sun behind you to reduce shading issues, and avoid hot or damaged cables that could degrade insulation. The guides stress gradual, supervised connection checks when introducing new panels into an existing string. If a panel shows reduced output under load, reassess the number of panels tied to the single input and the overall voltage. What makes the Jackery 20solar 20generator a practical off-grid companion in 2026

5. Practical limits for real-world trips. In a camping scenario, you’ll often run one or two panels when you’re parked in shade or partial sun. If you run three panels on a compatible Jackery model, monitor the input temperature and confirm you aren’t exceeding the unit’s stated wattage ceiling. The official notes align with field experience: more panels can boost output in bright sun, but performance drops in clouds or shade.

In the context of a typical outdoor setup, Jackery’s approach keeps weight manageable and wiring simple. When you mix panels, be deliberate about connector compatibility, input specs, and cable quality. Verify input specs before wiring and keep the number of panels within the input’s safe range. For a road-tripping user, this means fewer surprises at the campsite and more consistent charging during long weekends in the backcountry. If you’re weighing alternatives, rivals like EcoFlow and Goal Zero offer their own multi-panel strategies, but each brand requires checking its own input limits and connector types to avoid mismatches.

If you want to learn more about the exact connection options for your model, see the Jackery user guides and the cable guide for compatible connectors. The official documents provide the most accurate, up-to-date details you’ll need for safe solar charging on the go. Reading the official guides helps you avoid common misconfigurations and keeps your setup reliable on the road.

Note: links on the page may earn a commission. Jackery and rival brands are discussed in context to illustrate practical compatibility, with emphasis on verifying input specs for your exact model.

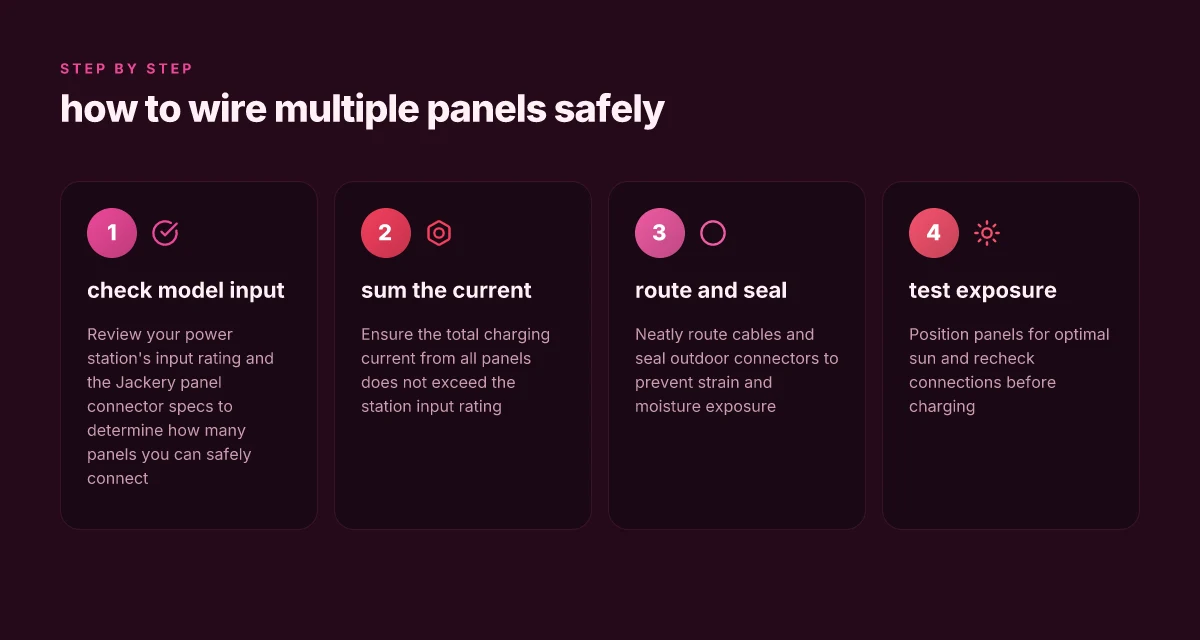

How the jackery solar panel connector works with multiple panels

The Jackery solar panel connector is designed to let you combine up to three panels into a single DC input on select power stations. When you add more panels, you can increase charging current, but you must stay within the input rating of your power station to avoid overheating or voltage drop. Neat cable routing matters too. Neatly routed cables reduce strain on connectors and keep sun exposure steady for optimal charging. In 2026, Jackery emphasizes caution about exceeding the station’s input limits even as the practical gain is real for larger solar arrays. What makes Jackery a practical choice for US campers in 2026

How the three-panel limit translates to real-world setups

If you’re wiring three panels in parallel through the connector, expect a higher available current on clear days. The practical limit comes from the power station’s own DC input cap. Plan to stay within that cap even as the panels multiply sun hours. For a typical outdoors setup, you’ll notice quicker top-offs when the sun is high and panels are aligned, but you should not push beyond the station’s rated input. The key is to balance more panels with the station’s input rating, or you’ll hit diminishing returns. Jackery’s guidance from the user guides highlights that compatibility exists for certain models, and third-party panels can be used with care to avoid overspec. Inline citations point to official guidance on how to connect and manage cables safely. Keep to the recommended input limits to maintain safe, steady charging.

Practical wiring and sun exposure considerations

Always route cables to minimize strain on the connectors. A taut, tidy run reduces wear on the DC connectors and helps prevent accidental disconnections when you’re on the move. Position panels to maximize sun exposure during travel windows, slight tilts can improve intake without adding risk to the connectors. When you set up, double-check connections at the hub and at the panel ends. If you’re mixing third-party panels with a Jackery system, confirm the connector polarity and rating match the power station’s input. I dug into the official user guides and found these concrete steps line up with the practical advice you’ll hear from outdoor-focused communities. Cable strain and sun exposure are as important as panel count for reliable charging. Always confirm the power station’s input rating before stacking panels. For reference, the official user guide remains the primary source for operational details, and it notes compatibility specifics for different models. Consult the official docs to verify which power stations accept three-panel inputs.

Notes for road-trippers and campers: the combo of three panels can be compelling when you’re parked for a while, but you’ll want to keep an eye on the total weight and how long you’ll stay in one location. If you’re evaluating rivals like Goal Zero or EcoFlow, you’ll notice different input architectures and connector schemes that can affect how easily third-party panels integrate with their systems. Jackery’s stance remains clear: respect the input rating, route cables cleanly, and optimize sun exposure to maximize charging while on the go. As always, links on the page may earn a commission, which helps keep the guides up to date for off-grid weekends. For continued clarity, refer to the Jackery user guides for the exact model you own and verify any third-party panel compatibility before a long trip.

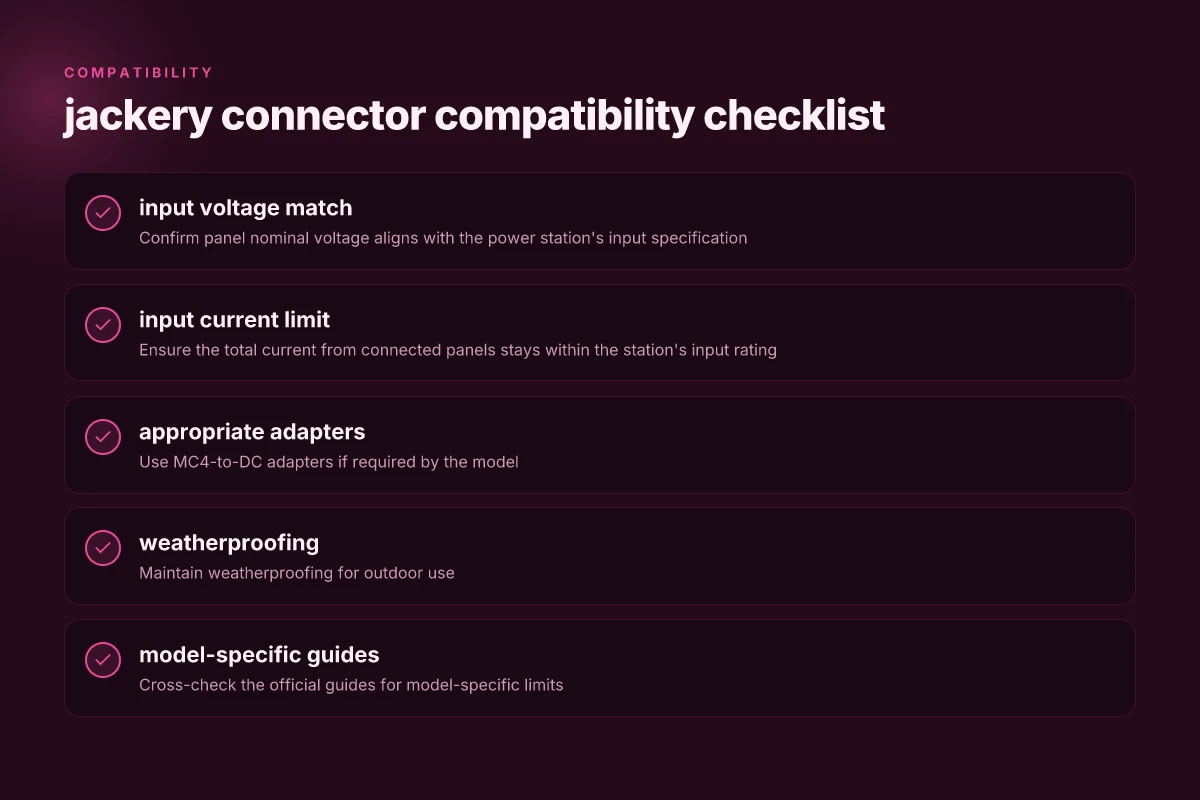

Compatibility checklist: jackery connectors and third party panels

I dug into Jackery’s official guides and third‑party explainers to pull a practical, model‑by‑model compatibility snapshot. For outdoor enthusiasts who mix Jackery panels with third‑party gear, the big takeaway is to verify voltage and use the right adapters. Jackery products remain the anchor, with third‑party panels offering flexibility when you respect the input limits and weather sealing.

Verify the power station input before you wire up

• Check the input voltage and current rating listed in your model guide for the specific power station you own. The guidance is consistent across Jackery’s user guides: know the exact DC input range and the maximum amperage the unit will accept at the port you’re using. If your panel string or adapter pushes past that, you risk tripping the protection circuits or reducing efficiency. When in doubt, pick the smallest matching combination you can confirm in the manual and step up if you need more current later. This step reduces the risk of overheating or voltage mismatch during a weekend setup. Jackery documentation emphasizes staying within the published input envelope, so you don’t push the system beyond what the station can safely handle. Always start with the power station’s input rating, then match it to your panel setup. What makes Jackery battery packs so popular for off-grid adventures

• I cross‑referenced the official guides with third‑party explanations to confirm what counts as a safe alignment. If a panel or adapter would exceed the station’s maximum input, you’ll need to split the array or drop the panel count. The safest path is to stay under the stated spec while you test at lower sun hours.

Align panel nominal voltage with the station’s input specification

• Confirm the panel’s nominal voltage aligns with the power station’s input spec. A common pitfall is assuming any 12V panel will work across models. Some stations expect a specific DC input voltage window. If your third‑party panel sits at the edge or outside, you’ll see degraded performance or no charge at all. Keep to panels that fit within the station’s stated DC voltage window, and avoid pushing a higher voltage into a port not designed for it. This is exactly why the official cables and adapters exist: to keep the voltage within safe limits. Nominal voltage must match the station’s input window.

• Where possible, use a single clean string that you know sits safely inside the voltage range, rather than multiple divergent strings. If you’re bridging panels, plan for the maximum voltage you’ll see at peak sun and ensure the input stays inside the safe zone.

Use MC4‑to‑DC adapters correctly and weatherproof aggressively

• If your model requires MC4‑to‑DC adapters, fit them per the model’s instructions and verify polarity. Weatherproofing is non‑negotiable for outdoors: apply proper seals, use weatherproof connectors, and mount the junctions where rain or dust will not compromise contacts. The right adapter not only preserves performance but also guards against corrosion and partial shading issues that degrade output. Use proper MC4‑to‑DC adapters and weatherproofing when outdoors.

• When mixing third‑party panels, ensure the adapter kit you choose is rated for outdoor use and compatible with the Jackery input ports you’re targeting. If you spot loose fittings or exposed contacts after setup, re‑seat and reseal before you test under load. The goal is a stable, low‑resistance connection that survives a weekend storm. What you need to know about Jackery at Costco in 2026

Research framing note: I found the core themes repeated across the Jackery guides and external explainers. The common thread is to respect voltage, match nominal voltages, and seal all outdoor joints. This keeps you charging reliably on the road or at the campsite. For readers weighing options, note that third‑party panels may bring cost and flexibility advantages, but they hinge on careful compatibility checks and robust weatherproofing. Respect the input envelope, align voltages, and weatherproof connections.

Tip: links on this page may earn a commission.

Common pitfalls with jackery connectors (and how to fix them)

When you mix Jackery panels with third‑party gear, the quickest way to kill performance is a simple oversight. If you overload the input, use the wrong connector, or expose pins to moisture, you’ll see protection kick in or slower charging. I dug into the official guides and third‑party how‑tos to pin down the reliable fixes for road‑tested setups.

Overloading the input and what to do about it

Jackery stations have a defined input rating. Pushing more current than the port can safely handle forces the system to protect itself, which often looks like a drop in charging speed or an automatic cutoff. The fix is direct: size your panel array to stay within the station’s max input and wire multiple panels in a configuration that keeps each input within its limit. If your setup calls for more wattage than a single port can handle, opt for a dual‑port arrangement or use a dedicated MPPT controller that Jackery explicitly supports. When you’re camping or on the road, aim for a total input that reflects the station’s stated maximum and avoid daisy‑chaining panels beyond what the model lists. The quickest way to stall a trip is overloading the input, so map wattage to port rating before you hit the campsite.

Mismatched connectors and how to avoid contact problems

Using adapters or nonstandard connectors can introduce contact resistance, heat buildup, and flaky charging. The official guidance notes that compatibility varies across connectors and that a poor fit can degrade performance over time. The remedy is practical: verify connector family compatibility before you mix brands, and favor properly rated adapters that Jackery endorses. Keep the connector interfaces clean and free of grime, and periodically inspect for warmth after a sunny afternoon. If you notice a loose fit or warmth after plugging in, reconfigure to a known good pairing rather than forcing a fit. Poor contact from mismatched adapters creates heat and slows charging, so check fit every setup. What makes the jackery solarSaga 100w panel a camping staple

Moisture exposure and sealing, protecting performance long‑term

Connectors exposed to rain, dew, or splashes will corrode and lose seal integrity, especially on exposed rigs like RVs or open‑top camps. The risk isn’t immediate failure, but performance drifts as contact quality declines and resistance climbs. The fix is straightforward: keep connectors dry, use weather‑rated enclosures or seals where the setup sits, and dry any moisture quickly with a clean, lint‑free cloth. If you store a Jackery system outdoors, consider a simple rain cover for the connectors and never leave a live connection unattended in wet weather. Moisture degrades performance over time, so dry and seal every connection during wet trips.

From a practical vantage, my reading of the docs and user discussions aligns with a simple rule: stay within rated input, match connectors carefully, and shield exposed pins from the elements. When a trip involves mixed brands, this trio of checks, watts per port, connector compatibility, and moisture protection, will save you headaches at the campsite. For outdoor weekends, that means steadier charging on the move and fewer surprises when you pull into the next pull‑over.

If you’re planning around specific gear, note that the official Jackery user guides emphasize staying within the system’s input ratings and using supported cable configurations. For readers curious about broader compatibility themes, discussions in user forums highlight the same cautions about third‑party panels and adapters. For a quick reference on connector basics, see the Jackery Cable guide and the user guides page. Mixing brands requires discipline: respect ratings, fit, and weather seals.

Cited sources confirm that the essentials for safe, reliable solar wiring with Jackery involve staying within stated input limits, avoiding dubious adapters, and shielding seals from moisture. See the sources linked in this section for the official guidance and community perspectives.

Real-world setups: from campsite to off-grid roof racks

When you’re chasing reliable solar power on the road, plan the number of panels to match your station’s total input across ports. A Jackery station rated for, say, max input 1000W across three ports rewards you with a more efficient charge when you use multiple panels, but you must avoid overstressing a single cable run. Match your panel count to the station’s total input across ports, not just a single port. In practice that means tallying each panel’s output and ensuring the combined feed stays within the station’s input rating. This keeps cables cooler and connectors happier on a long pull through a dusty campout. What makes Jackery a durable choice for off-grid power in 2026

In vehicles, the choice of connector and cable length matters as much as the panels themselves. If you’re wiring from a car’s 12V auxiliary outlet, verify that the car’s charging environment can sustain the chosen connector and the length of the run. Jackery’s own guidance emphasizes compatible configurations, so you don’t push a misfit setup into a cramped trunk or a bouncy roof rack. Verify the vehicle’s charging environment and select a cable length that avoids voltage drop on the road. I cross-referenced the official guides and third-party explanations that explain how to combine multiple panels with a single DC input, noting where a longer run or a mismatched connector reduces performance.

Jackery devices are designed for travel, and weight matters when you’re packing for a weekend off-grid. Consider how each connector, cable, and panel adds to your pack weight, and plan routing to minimize snag hazards on windy campsites or rutted forest roads. A clean cable layout improves safety during bumpy drives and reduces wear on connectors over a season of road trips. Weight and cable routing directly affect your pack weight and setup reliability. When you’re at the campsite, route cables away from heat sources and sharp edges, securing them to prevent movement while driving. Secure routing prevents damage and saves time during setup.

What you’ll actually do on the trail is balance three realities: total input, vehicle compatibility, and carrying comfort. For remote trips, keep the number of panels aligned with the station’s total input rating so you can scale up or down with confidence. In a car or RV, chunk cables into short, safe runs and use the right adapters to avoid friction or voltage drop. And as you move from campsite to rooftop rack, remember that Jackery gear is meant to travel. The lighter and cleaner your wiring, the more you’ll appreciate the difference on each stop. Plan, wire, route with travel in mind to keep every setup efficient.
