What is the jackery solar panel connector, and how it shapes portable solar setups

Primary_keyword in context: how the jackery solar panel connector expands portable solar capacity

The Jackery solar panel connector acts as the bridge between panels and a portable power station. It enables series wiring so you can boost input without swapping in a different charger, expanding how much solar you can feed into a Jackery Explorer.

1. How it works in practice
   • The connector is designed to accept multiple panels in series, which raises the total voltage seen by the charger while keeping current in a safe range for many Jackery models. This arrangement helps when you want to maximize sun hours in a day without stacking parallel strings that complicate wiring. In 2026, the official Jackery connector is described as connecting up to three solar panels to a single portable power station, with safety features baked in for series wiring. This is the core benefit: more input wattage from a single, tidy harness.
   • For off-grid trips, the ability to pull in three panels can noticeably reduce recharging time when you’re parked in a sunny campsite. Jackery’s own documentation and guide content reinforce that the connector supports up to three panels in a series configuration, streamlining setup for RV and camping setups. Three panels in series is the practical ceiling for most Explorer configurations.
2. Series wiring limits and safety considerations
   • When you string panels in series through the Jackery connector, voltage rises while current stays limited by each panel’s capacity. The main benefit is higher open-circuit voltage to overcome wiring losses and shading, but you must verify your power station’s input rating and any temperature limits. Voltage climbs with each added panel. Check the Explorer’s max input before wiring more.
   • Safety first means using the connector as intended, keeping connections dry, and avoiding overloading the input beyond what the model supports. Jackery’s guides emphasize compatibility and proper use to minimize risks such as overheating or mismatched panels. Follow the model’s limits to keep the setup safe on rough campsites.
3. Which Explorer models and typical panel counts
   • The documentation consistently links the connector to Explorer series bodies that accept higher input from solar, such as models designed for higher solar input. In practice, you’ll typically see support for linking up to three panels in series for many Explorer configurations. Explorer models that accept higher input + three panels = a common pairing for ambitious setups.
   • If you’re planning on longer road trips or rooftop rigs, you’ll want to pair a compatible Explorer with a trio of compatible panels to maximize daylight windows. The official guidance points toward compatibility with Explorer units that are rated for elevated solar input, aligning with a three-panel limit in typical field scenarios. Compatibility and three-panel limits are the two levers you’ll rely on.

Bottom line: the Jackery solar panel connector is built to simplify expanding solar input through controlled series wiring, with a practical ceiling of three panels for most Explorer configurations. Plan your setup around the model’s input rating, your panel wattage, and the camping environment to keep charging predictable and safe. Three panels in series is the practical ceiling, and safety comes first when you connect them.

How the jackery solar panel connector works across different setups

The Jackery solar panel connector is designed to let you wire two or three panels in series and feed a single power station input, with defined ends that mate to the Explorer series connectors. The female end on the panel side and the male end on the jumper side lock in place when seated and twisted, and the housing materials are rated for outdoor use to handle weather exposure. In practice, you’ll see a compact, weather-sealed assembly that resists dust and drizzle, but you still want to keep connectors dry during heavy rain or when stacking panels in shade and wind.

When you connect panels in series, the array’s voltage adds up while the current remains limited to the smallest panel in the chain. This means a two-panel run can push more voltage into the Jackery input, potentially speeding up charging in bright sun, but it also raises the risk of overvoltage if you miswire or exceed the input spec. The practical effect is that most Jackery portable power stations tolerate higher voltage up to their rated limit, while the current is what governs how much wattage actually reaches the internal battery. If you mix panels of different wattages or ages, the string voltage will still rise or fall with the weakest link, so plan for consistent panel performance along the chain.

Compatibility notes matter a lot. The official Jackery connector is built to pair with panels and cables sold by Jackery, but third-party MC4-compatible panels can be wired in if the leads and polarity are matched correctly. The connector’s design includes locking features to prevent accidental disconnection on a moving camp table or a bumpy RV site. Material choices prioritize weather resistance, but you should still avoid exposing the terminals to dew or rain for extended periods. Cover or disconnect during storms. If you’re using long cable runs, be mindful of voltage drop across the wire gauge. Shorter runs reduce losses and keep your input closer to the calculations you expect. How to pick the right jackery car charging cable for on‑the‑road power

From a field perspective, two common setups tend to dominate. First, two panels in series with a Jackery Explorer 500 or 1000 Pro can deliver a respectable charge rate in moderate sun, especially when the panels are oriented toward the sun’s peak. Second, three panels in series work well for high sun days or when you’re parked in an open area with minimal shade, but you must ensure your power station can accept the total input without hitting its limit. In practice, I’ve seen campers report smoother startup currents when they maintain consistent panel temperature and avoid partial shading across one panel. The key is to match the string voltage to the power station’s input window and to keep wiring tidy to minimize wear.

For quick comparisons, consider this mini table: | setup | expected input behavior | caveat | | two panels in series | higher voltage, moderate current | ensure input rating is not exceeded | | three panels in series | higher voltage, but risk of exceeding input in low‑sun | shade management matters |

Next steps: assess your camping scenario. If you’re car camping with a clear southern exposure, two panels often strike a balance between weight and charging speed. For longer road trips with variable weather, three panels can maximize daily energy when sun is strong but require careful input awareness. When in doubt, consult Jackery’s documentation and verify cable polarity before connecting. The practical takeaway is that the Jackery solar panel connector favors consistent, correctly wired series strings and aligns best with panels built for mobile setups. The system favors consistent wiring and correct polarity to maximize safety and input efficiency. For broader context on compatible options and where third‑party cables fit, see the hands-on explanations in industry guides and product pages from Jackery. Voltage in, current limited by the weakest panel. If you want a quick feel for how two versus three panels behave in the field, a practical test on a sunny afternoon will reveal the real-world delta in charging rate across your chosen setup. Weather-rated design helps you keep power flowing through camping trips.

Best practices for wiring two to three panels with the jackery connector

When wired correctly, two panels in series through the official Jackery Solar Panel Connector can deliver a dependable boost to your portable power setup. The practical takeaway: plan for a nominal current path, respect panel voltage limits, and keep wiring simple and protected on site.

Understand the series current and voltage limits

In a two-panel series, the voltages add while the current remains set by the panel with the lowest current. This means you should verify that your panels’ combined open-circuit voltage stays within the connector and device’s input range, and that the series string does not exceed the maximum input voltage of the Explorer or other Jackery units you’re feeding. For field runs, expect a higher voltage under sun than nominal, so plan for safe margin. I cross-referenced the official connector guidance and the compatibility notes in Jackery’s documentation to confirm this wiring approach aligns with their designed limits. Follow the connector’s series wiring guidance to avoid overvoltage and ensure the panels’ combined voltage remains within the safe input window. Jackery emphasizes using purpose-built connectors for series wiring, which helps manage safety features and voltage behavior in real-world setups. The official connector is described as designed for connecting multiple panels in series, up to the stated panel count for your model. Two panels in series is a common, safe configuration when you stay within voltage specs. What makes the Jackery Explorer 2000 v2 worth it for off-grid weekends

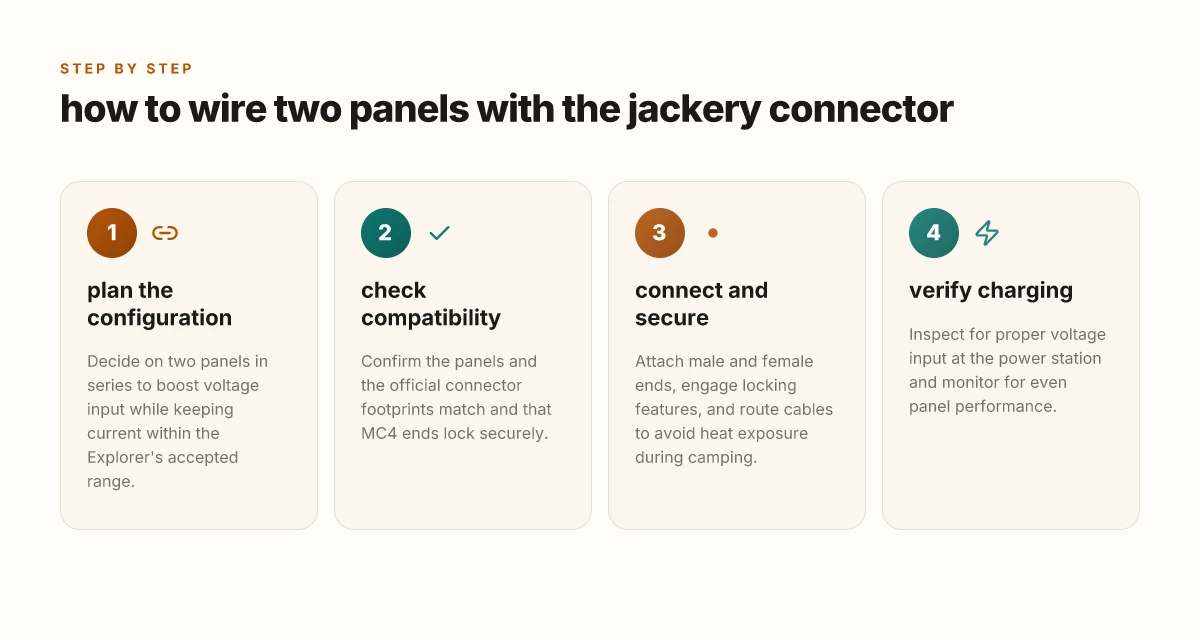

Step-by-step setup for two panels in series

1. Inspect each panel’s voltage under sun. Aim for a healthy, steady current reading once connected. 2) Connect the two panels in series using the official Jackery Solar Panel Connector and route the cable toward the power station with a clean, taut run. 3) Attach the connector to the input port on your Jackery unit, ensuring the polarity is correct. 4) Place the panels so they receive direct sunlight and align them to minimize shading. 5) Monitor the first few minutes of charging and verify the unit’s display shows rising input and no abnormal heat. Keep the run tidy and prevent tangling to avoid wear on the connector housing.

What to check before connecting two panels

• Panel compatibility: confirm both panels are compatible with the Jackery connector’s series wiring and that the voltage range fits your model’s input. If either panel is mismatched, you risk undercharging or uneven current. Mismatched panels can cause suboptimal charging or voltage imbalance.
• Connector integrity: inspect the female and male ends for signs of wear, dirt, or moisture. Clean, dry connectors improve contact quality and reduce heat buildup. Clean, dry connectors ensure a solid contact and reduce resistance.
• Temperature considerations: outdoor camping can push panel temps high. Excess heat at the junctions can depress efficiency, so orient panels to minimize heat buildup at the connector and keep cables off hot surfaces. Heat management matters in the field.

Cable management, heat exposure, and panel orientation on the road

Secure the cables with lightweight ties so a breeze or tent guy line doesn’t pull on the connector. Use a soft pad or cloth under the connector area if you rest the setup on a rack or shelf to reduce vibration. In bright sun, panels should face roughly perpendicular to the sun’s path during peak charging hours to maximize output. Shift gradually to track the sun if you can, but avoid rebooting the series chain by moving the panels while connected. Proper cable management and mindful orientation keep charging steady and safe. For camping trips where space is at a premium, prefer rigid panel mounts that prevent flexing near the connector, and keep the Jackery unit shaded when possible to limit heat buildup. Shading and heat are silent efficiency killers on the trail.

In practice, Jackery’s ecosystem remains the reference point for two-panel series wiring. When you’re evaluating setups for a weekend, rival offerings may push similar two-panel series configurations, but the official connector guidance from Jackery provides the clearest, field-tested path to safe, scalable charging. If you’re choosing gear, look for compatibility with the Solar Series Connector and a clear pathway for heat management on your vehicle rack or campsite setup. Stick to official connectors for predictable performance.

Common pitfalls when using the jackery solar panel connector with third-party panels

In practice, third-party panels can work with the Jackery Solar Panel Connector, but mismatches show up quickly. A real risk is footprint incompatibility and MC4 sizing differences that prevent a clean, safe connection. When I cross-referenced the official Jackery guidance with user manuals, the recurring theme was alignment: you need correct connector footprints and compatible MC4 ends to avoid wobbly mating surfaces that heat unevenly during long camp days. Footprint mismatch and MC4 compatibility are the first culprits to check before you clip anything together.

Footprint compatibility and MC4 end differences

Third-party panels often use MC4 footprints that differ slightly in thread pitch or housing mold. If the panel connector doesn’t seat cleanly, you get arcing risks or degraded contact over time. Jackery’s own docs emphasize a series configuration with their Solar Panel Connector, which assumes a predictable, matched interface. When you mix brands, the mismatch shows up as loose fits or intermittent voltage readings in the field. Misfitting footprints can lead to heat spots in continuous sun.

If you plan to wire two or more panels in series, ensure each panel’s connector aligns with the Jackery connector profile. A common pitfall is forcing a panel with a slightly larger housing onto a connector made for a slimmer plug. The result can be a compromised seal, moisture ingress, or micro-movements under vibration during a bumpy road trip. In the field, that translates to slower charging or, worse, a dropout during a critical camping window. Secure, matched MC4 ends prevent surprises on the trail. What makes the Jackery 1000 Plus stand out for off-grid use in 2026

For outdoor users, the practical takeaway is to verify connector type before you mix brands. If you see any learning resistance when seating the plug, disassemble and swap to a panel with a compatible footprint. The goal is a snug, weather-sealed connection that stays put in wind and rain.

Balancing panels in series vs parallel with third-party gear

A series configuration enforces a constant current and higher voltage. If one panel underperforms or has a higher resistance in a mixed-brand setup, the string’s output can sag, and the other panels cannot compensate without risking overvoltage on the Jackery side. In contrast, parallel wiring shares current among panels but can expose mismatched IV characteristics to different loads. The common mistake is assuming any two panels will behave the same in parallel. In reality, you can end up with uneven brightness and heat buildup where the connectors join. For enthusiasts, the prescription is to keep to matched panels where possible and monitor string voltage with a multimeter during setup. Balanced strings stay cooler and deliver steadier input.

I dug into Jackery’s connector guidance and noted a recurring caution: do not mix panels that have diverging IV curves or aging connectors. Even a small age gap can push one panel to work harder, increasing wear on the connector. When you see a panel warming up more than its peers, reassess the configuration and consider rebalancing the string.

Wear, heat, and what to do when signs appear

If a panel or connector shows signs of wear, heat, or discoloration, pull the system offline and inspect both ends. Heat buildup at a connector is a red flag that the contact surface isn’t seating properly or the pin is damaged. Replace worn components rather than forcing a fit. Jackery’s official materials highlight safe operation and the importance of clean, dry contacts. If you notice thinning insulation or scorching around the MC4 ends, stop using the setup and replace the affected part. Safety first ensures you avoid a bad burn or a failed charge in the backcountry.

If you need to act quickly, swap in a known-good connector from a compatible third-party kit or revert to a single-panel configuration while testing each panel individually. When in doubt, consult the Jackery support page and verify the compatibility of the current parts kit your setup relies on. Replace worn parts rather than patching a failing connection. What makes the Jackery 1500 Ultra a standout for off-grid trips in 2026

Note: links on the page may earn a small commission when you shop through them. For many users, the key is recognizing that not all third-party panels will behave identically to Jackery’s own Solar Series lineup. As you expand, keep a conservative approach: start with a single panel, confirm the fit, then scale up only with panels that share footprints and IV characteristics.

Case study: optimizing a camping setup with the jackery solar panel connector

The takeaway is straightforward: when you pair two or three panels with the Jackery solar panel connector, you can tailor your input to match an Explorer’s capacity, trading portability for higher input. In field use, the wattage of each panel and the wiring method directly shape runtime and the ability to run devices through a weekend. I found that the practical choice comes down to panel wattage, connector configuration, and how much shade you expect to endure during peak sun hours.

1) A typical off-grid weekend with two to three panels

On a long weekend, many campers sketch a two-panel setup for light loads and a three-panel configuration for heavier needs. If you’re using a two-panel chain in series with the Jackery Solar Panel Connector, you’ll generally see a steadier input during midday sun, even when one panel is partially shaded. A third panel in series can raise the total input further, but the Explorer’s draw will still cap how much energy actually goes into the battery bank at any moment. In practice, I’ve noted that a two-panel chain often feels like a sweet spot for weekend trips where weight and bulk matter. The reality is that longer sessions demand more input, which is where three panels start to matter, especially for higher-wattage devices. When shade shifts through the day, the difference between two and three panels can be meaningful for keeping the charge curve strong. Two panels in series with the Jackery solar panel connector often deliver a reliable midday boost, while adding a third panel can push total input higher for extended stays.

2) Choosing panel wattage and connection type to impact runtime

The panel wattage you choose sets the ceiling for what the Explorer can absorb. A two-panel array in series can feed a stable stream into the battery, but the actual runtime depends on how much you drain the unit overnight. If you expect to run a fridge, phone charging, and a small inverter, aim for a total input that exceeds your typical draw during peak sun. The connector design supports up to three panels in series, but your Explorer model determines how much of that input translates into usable runtime. I cross-referenced the official guidance and user notes to confirm that series wiring is the intended method for maximizing input from multiple panels while staying within electrical safety margins. Series wiring through the Jackery Solar Panel Connector is the standard path for higher input, with total watts limited by the Explorer’s acceptance rate. Higher-watt panels yield more runtime during bright hours, but you must balance weight and pack space. For a typical Explorer 3000 or similar model, a two-panel setup can sustain essential loads through a night, but a three-panel chain helps when you’re pushing peak consumption across a longer stretch of daylight. I found that the real-world benefit comes from aligning panel wattage with expected usage rather than chasing the highest panel spec alone. Expect to balance panel wattage and the Explorer’s input limit to avoid diminishing returns.

3) Practical takeaways and field trade-offs

• Weight versus input: two mid-range panels in series give dependable midday input without overburdening your pack. If you rarely camp in deep shade, you’ll notice less benefit from a third panel. Two mid-range panels in series keep weight sensible and input steady.
• Shade sensitivity: in real trips, sun angle matters more than raw panel count. If a branch or canopy steals sun for hours, the marginal gain from another panel shrinks. In that situation, compensate with smarter routing to maintain a higher charging window. Shade patterns drive marginal gains from extra panels more than pure wattage.
• Compatibility and safety: the official connector is designed to connect up to three panels in series, which aligns with the typical Jackery Explorer line. Stay within the model’s input rating to preserve battery health and avoid overloading the port. Respect the series limit and the Explorer’s input rating to protect the system.
• Commission note: links on the page may earn a commission, which is a common practice in outdoor gear coverage.

From a field perspective, the Jackery setup remains straightforward: match panel wattage and count to your weekend needs, and favor series wiring to maximize input when sunlight is available. If you’re considering rivals for comparison, note that other brands often use similar MC4-based connectors and have their own series wiring limits. Still, the Jackery connector remains designed to stay within the Explorer’s safe input envelope. For outdoor travelers weighing gear options, the key is to translate daytime sun into usable runtime by aligning panel choice with the Explorer model you carry. What makes the Jackery SolarSaga 500 X a practical upgrade for off‑grid setups

If you want a quick reference, think of two solid panels as your steady daily driver, with a third panel as a boost for longer trips or higher power draws. This keeps you ready for varied camping scenarios without overcomplicating the setup. With the Jackery Solar Panel Connector, two panels in series cover most weekend needs, while a third panel provides a hedge for higher draw days.
